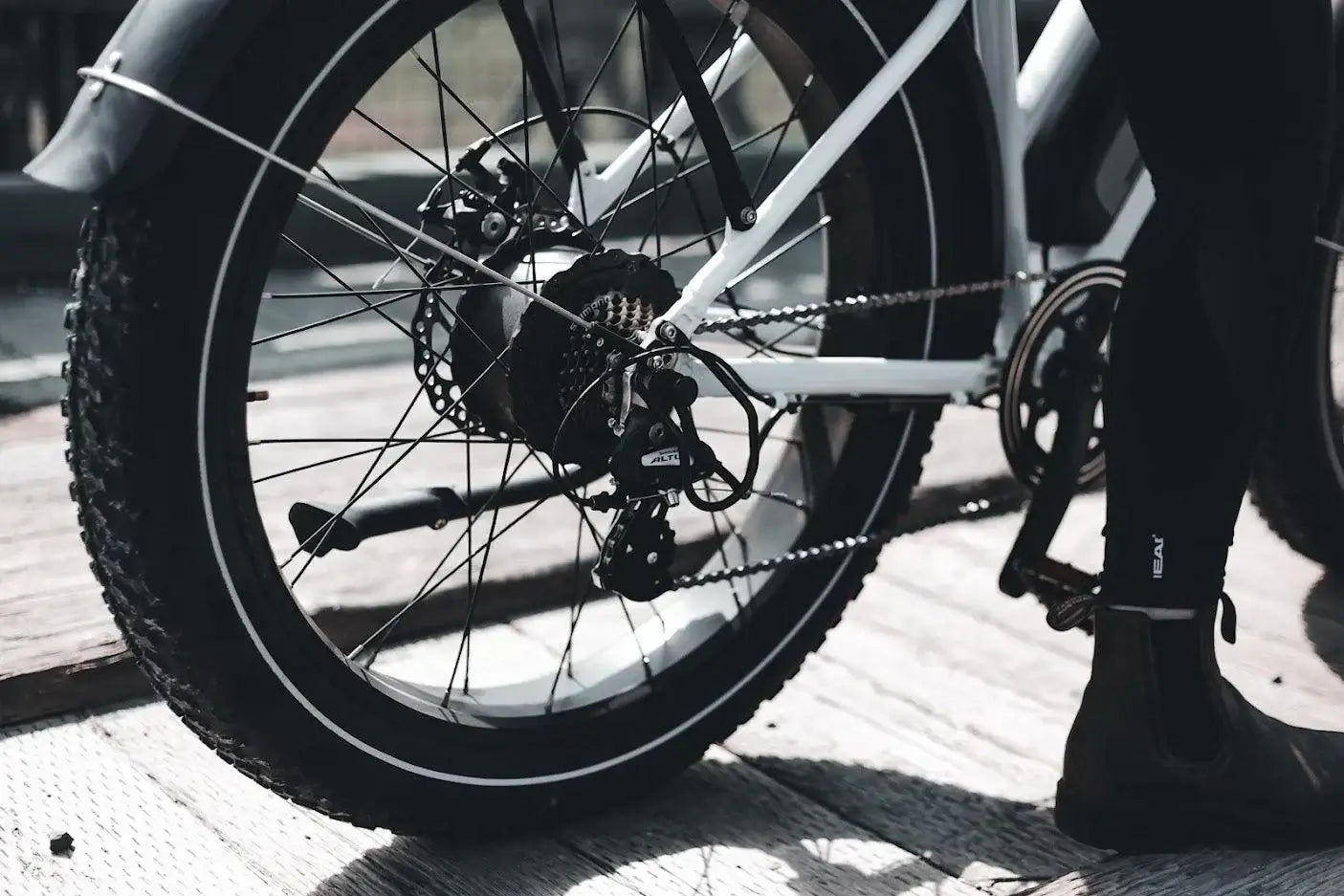

Step-by-Step E-Bike Derailleur Adjustment Guide

Why E-Bike Derailleur Adjustment Matters More Than Ever

The 2025 E-Bike Revolution

The electric bike industry is experiencing unprecedented innovation in 2025. From lighter frames and more intelligent tech to automated gear systems, 2025 promises to redefine the cycling experience. Modern e-bikes feature advanced components like torque sensors, smart shifting systems, and powerful motors that put additional stress on the drivetrain.

Unique E-Bike Challenges

Unlike traditional bicycles, e-bikes present unique derailleur adjustment challenges:

• Higher torque loads from motor assistance can strain shifting components
• Increased weight affects chain tension and derailleur positioning
• Electronic integration with modern smart systems requires precise calibration
• Extended riding ranges mean more frequent adjustments are needed

Essential Tools for E-Bike Derailleur Adjustment

Before starting your adjustment, gather these essential tools:

Basic Tool Kit:

• Phillips head screwdriver (JIS standard preferred for Shimano components)
• 5mm hex key (Allen wrench)
• Small metric wrenches (3-6mm) or adjustable wrench
• Chain checker tool
• Clean rags and degreaser
• Chain lubricant

Professional Tools (Recommended):

• Derailleur hanger alignment gauge
• Cable tension gauge
• Bike work stand
• B-tension adjustment tool (for modern systems)

Step-by-Step E-Bike Derailleur Adjustment Guide

Step 1: Pre-Adjustment Safety and Inspection

Power Down Your E-Bike Always turn off your e-bike completely before beginning any mechanical work. This prevents accidental motor engagement during adjustment.

Visual Inspection Checklist Take a quick look from behind the bike at wheel level to check the vertical alignment of the two pulleys or jockey rollers inside the cage to verify that the derailleur is hanging straight. The lower pulley should be directly underneath the upper one positioned just below the sprockets or the chain will not track properly.

Check for:

• Bent derailleur hanger
• Damaged cables or housing
• Chain wear using a chain checker tool
• Debris in the derailleur mechanism

Step 2: Limit Screw Adjustment (H and L Screws)

High Limit Screw (H) Adjustment

The rear derailleur guide roller must be exactly aligned. To adjust, turn the stop screw marked "H", as in "high", which is above the other screw on the derailleur.

1. Shift to the smallest rear cog (highest gear)
2. Locate the "H" screw on your derailleur
3. Adjust until the upper jockey wheel aligns perfectly below the smallest cog
4. Test by manually pushing the derailleur - it should not move beyond the smallest cog

Low Limit Screw (L) Adjustment

Now place the chain on the largest sprocket to adjust the inner stop. The sprocket and the derailleur pulleys must be aligned again. To do this, turn the stop screw on the rear derailleur, marked with the letter "L", for "low".

1. Shift to the largest rear cog (lowest gear)
2. Locate the "L" screw on your derailleur
3. Adjust until the upper jockey wheel aligns directly below the largest cog
4. Ensure the chain cannot fall into the spokes

Step 3: B-Tension Screw Adjustment

Critical for 2025 E-Bike Performance

Adjust the distance from the cassette using the tension screw "B". If you turn the tension screw B to the right, the gap increases, if you turn it to the left, it decreases.

Modern B-Tension Guidelines:

• 12-speed systems: Use manufacturer-specific gap tools
• Shimano systems: Look for guide lines on newer derailleur cages
• SRAM systems: Follow T-Type specifications for 2025 models

For optimal performance:

1. Shift to the largest rear cog
2. Adjust B-tension screw until proper gap is achieved (typically 5-6mm for most systems)
3. Test shifting through all gears to ensure smooth operation

Step 4: Cable Tension Fine-Tuning

The Heart of Smooth Shifting

Cable tension is the heartbeat of derailleur indexing. After setting limit screws, shift to the smallest cog and remove any cable slack with your barrel adjuster.

Barrel Adjuster Method:

1. Start with barrel adjuster positioned halfway
2. Shift to the third gear from the smallest cog
3. Fine-tune using quarter-turn adjustments

Key Adjustment Rules:

• If the chain seems hesitant to shift up, increase the cable tension by turning the barrel adjuster anticlockwise
• If shifting feels sluggish going to smaller cogs, decrease tension (clockwise)
• Make quarter-turn adjustments when fine-tuning, test by shifting through all gears

Step 5: Complete System Testing

Comprehensive Performance Check

1. Full Range Test: Shift through every gear combination
2. Load Testing: Apply moderate pedal pressure while shifting
3. Noise Assessment: Listen for grinding, clicking, or rubbing sounds
4. Chain Line Inspection: Verify proper chain alignment in all positions

2025 E-Bike Specific Considerations

Smart Shifting Systems

Many 2025 e-bikes feature automated gear systems that require special consideration:

Electronic Derailleur Calibration:

• Use manufacturer-specific apps for micro-adjustments
• Follow electronic limit setting procedures
• Ensure battery levels are adequate for proper function

Motor Integration

Ensure the derailleur is compatible with your e-bike's motor and drivetrain setup. Some e-bike motors are designed to work best with specific derailleur types, which can affect overall performance and efficiency.

E-Bike Specific Adjustments:

• Account for motor torque in cable tension settings
• Consider pedal-assist sensor interference
• Adjust for increased chain wear rates

Common E-Bike Derailleur Problems and Solutions

Problem: Chain Dropping During Motor Assistance

Symptoms: Chain falls off during power-assisted pedaling Solution:

• Tighten limit screws slightly
• Check B-tension adjustment
• Inspect chain wear and replace if necessary

Problem: Sluggish Shifting Under Load

Symptoms: Gears won't shift smoothly when motor is engaged Solution:

• Increase cable tension slightly
• Lubricate derailleur pivot points
• Check for cable housing contamination

Problem: Electronic Shifting Malfunctions

Symptoms: Electronic derailleurs not responding properly Solution:

• Check battery charge levels
• Recalibrate using manufacturer app
• Inspect wiring connections

Maintenance Schedule for E-Bike Derailleurs

Weekly (Heavy Use):

• Visual inspection
• Chain lubrication
• Basic cleaning

Monthly:

• Cable tension check
• Derailleur alignment verification
• Comprehensive cleaning

Seasonally:

• Complete adjustment review
• Cable and housing replacement (if needed)
• Professional inspection

Advanced Tips for 2025 E-Bike Optimization

Upgrading Components

The transmission also received an upgrade, with the lower tier 7-speed Tourney derailleur getting replaced with a step up in Shimano's hierarchy to an 8-speed Altus. Consider upgrading to:

• Shimano Deore XT Shadow+ for mountain e-bikes
• SRAM Eagle systems for wide-range gearing
• Electronic groupsets for precision shifting

Performance Enhancements

For optimal 2025 e-bike performance:

• Use high-quality chain lubricants
• Invest in premium cables and housing
• Consider clutch-equipped derailleurs for chain stability

Integration with Modern E-Bike Technology

Smart Diagnostics

Many 2025 e-bikes feature integrated diagnostics that can:

• Monitor derailleur performance
• Alert to maintenance needs
• Provide adjustment guidance through mobile apps

GPS and Anti-Theft Integration

New models now feature built-in GPS and navigation for seamless route planning, app connectivity to monitor battery life, motor performance, and ride analytics, plus advanced anti-theft tracking with real-time location updates.

Professional vs. DIY Adjustments

When to DIY

• Basic cable tension adjustments
• Limit screw fine-tuning
• Regular cleaning and lubrication

When to Seek Professional Help

• Derailleur hanger alignment
• Electronic system programming
• Complex drivetrain replacements

Future-Proofing Your E-Bike Drivetrain

2025 Technology Trends

The e-bike industry continues evolving with:

• AI-powered motor tuning
• Automated shifting based on terrain
• Predictive maintenance alerts

Investment Considerations

When upgrading components, consider:

• Compatibility with future motor systems
• Serviceability and parts availability
• Integration with smart bike ecosystems

Conclusion: Mastering E-Bike Derailleur Adjustment in 2025

Proper derailleur adjustment is essential for optimal e-bike performance, especially with the advanced systems found in 2025 models. When it comes to maintenance, check the tire pressure regularly and keep the chain clean and lubricated. Check the brakes regularly and replace the pads as needed. By following this comprehensive guide and staying current with the latest technological developments, you'll ensure your e-bike delivers smooth, reliable shifting for years to come.

Remember that e-bike technology continues advancing rapidly. Stay informed about the latest developments, and don't hesitate to consult with certified e-bike technicians for complex adjustments or when upgrading to newer systems.
