A Complete Troubleshooting Guide for Tamobyke Riders

Common Tamobyke Error Codes Explained

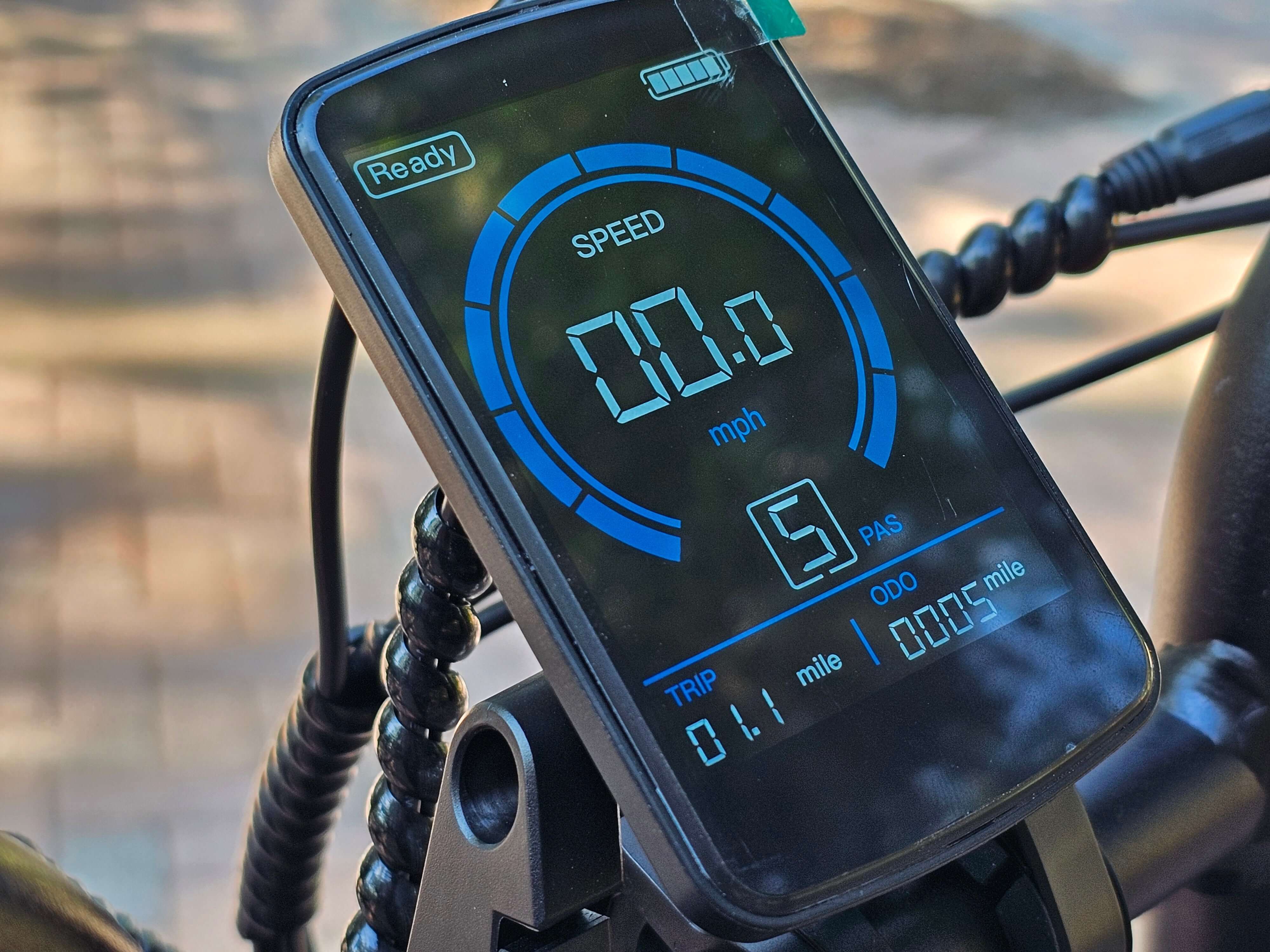

Let's break down the most common error codes you might encounter on your Tamobyke's display panel and learn how to troubleshoot them effectively.

Error Code E001: Phase Loss Fault

What it means: This error indicates that the three differently colored wires connected to the motor and controller are mixed up or damaged. Phase loss occurs when the electrical signals aren't reaching the motor correctly.

Troubleshooting Steps:

1. Check if the waterproof connector between the motor and controller is loose
2. Inspect the external wires of the motor for scratches or damage
3. If all checks are correct, contact Tamobyke after-sales service for further inspection

Error Code E004: Communication Fault

What it means: This error relates to the communication system between the instrument, main line, and controller. When any part of this system experiences a short-circuit or poor connection, the E004 error appears.

Troubleshooting Steps:

1. Look for short-circuits in the instrument clothing, wiring, or controller connection
2. Reconnect the line if the error persists
3. If issues continue, contact customer service to replace the main line

Error Code E008: Battery Under Voltage Protection

What it means: This occurs when battery voltage falls below 36.5V, triggering the system's protection mode.

Troubleshooting Steps:

1. Check the battery level and charge it promptly
2. If the E008 error persists even after a full charge, the display unit may need replacement

Error Code E010: Controller Fault

What it means: The controller is unable to effectively dissipate heat under high load conditions.

Troubleshooting Steps:

1. Allow the controller to cool down if you've been riding in demanding conditions
2. The controller will need replacement if the issue persists, as it indicates damage to the component

Error Code E020: Throttle Connection Issues

What it means: This error appears when there's a problem with the waterproof connector of the throttle, pinhole alignment, or other throttle-related issues.

Troubleshooting Steps:

1. Check the waterproof connector
2. Confirm whether the plug is normal and check for any misalignment or bent pins
3. Debug the instrument parameters
4. Adjust the instrument parameter p06 to match p02

Error Code E040: Hall Sensor Fault

What it means: This error is related to the motor Hall sensor wires, which transmit electrical signals to control the motor's operation. The Hall wires are a 6-core cable with different colors connecting the motor phase wires to the controller.

Troubleshooting Steps:

1. Check for short circuits in the Hall wires
2. Inspect for damage to the external cables
3. Make sure all connections at both ends are secure
4. For persistent issues, collect videos of the connection between the motor and controller to facilitate troubleshooting

Preventative Maintenance to Avoid Error Codes

While some error codes are inevitable, many can be prevented with proper maintenance. Here are some tips to keep your Tamobyke running smoothly:

Regular Connection Checks

Make it a habit to inspect all the connections on your e-bike, particularly after riding in wet or muddy conditions. Loose or corroded connections are a common source of error codes.

Check out our comprehensive maintenance guide for detailed instructions on keeping your Tamobyke in perfect condition.

Weather Protection

While Tamobyke e-bikes are designed to handle various weather conditions, extreme exposure to water, dirt, or extreme temperatures can lead to electrical issues. When possible:

• Store your bike in a dry, temperature-controlled area
• Use bike covers when leaving it outdoors for extended periods
• Clean your bike after riding in muddy or wet conditions
• Avoid high-pressure water directly on electrical components

Battery Care

Many error codes relate to battery issues. To maximize battery health:

1. Keep your battery charged between 20% and 80% for daily use
2. Fully charge the battery before long-term storage
3. Store batteries at room temperature when not in use
4. Avoid completely draining the battery regularly

When to Seek Professional Help

While many error codes can be resolved through the troubleshooting steps above, some situations warrant professional assistance:

• Persistent error codes that reappear after troubleshooting
• Multiple error codes appearing simultaneously
• Any signs of water damage to electrical components
• Battery issues that don't resolve with charging
• Unusual noises or behavior from the motor

Our network of authorized service centers can provide expert assistance when needed.

The Technology Behind E-Bike Error Codes

Understanding how your e-bike's diagnostic system works can help you appreciate the sophisticated technology that powers your Tamobyke. Modern e-bikes feature integrated computer systems that constantly monitor various parameters:

1. Battery Management System (BMS) - Monitors voltage, current, and temperature
2. Motor Controller - Regulates power delivery and tracks motor performance
3. Display Unit - Serves as the interface between the bike's systems and the rider
4. Sensor Networks - Track speed, pedal assistance, and component status

When any of these systems detect an abnormality, they generate an error code to communicate the specific issue. This diagnostic capability is similar to that found in modern automobiles but tailored specifically for e-bike applications.

For those interested in learning more about e-bike electrical systems, Wikipedia's article on electric bicycles provides additional technical information.

Latest Innovations in E-Bike Diagnostics

As e-bike technology evolves, so do diagnostic capabilities. The latest trends in e-bike error detection and resolution include:

Mobile App Integration

Many newer e-bikes now pair with smartphone apps that provide detailed diagnostic information beyond simple error codes. These apps can offer step-by-step troubleshooting guidance and even connect riders with technical support.

Predictive Diagnostics

Advanced systems can now detect potential issues before they cause failures, alerting riders to perform preventative maintenance before an error code appears.

Remote Diagnostics

Some high-end e-bikes feature systems that allow technicians to diagnose problems remotely, reducing downtime and simplifying the repair process.

Conclusion

Error codes are an essential communication tool between you and your Tamobyke. Rather than seeing them as a nuisance, consider them as your bike's way of telling you exactly what needs attention. By understanding these codes and following the troubleshooting steps in this guide, you can resolve most issues quickly and get back to enjoying the freedom and fun of your electric bike.

Remember that regular maintenance is key to preventing many common issues, and our Tamobyke support team is always available to help with more complex problems.
